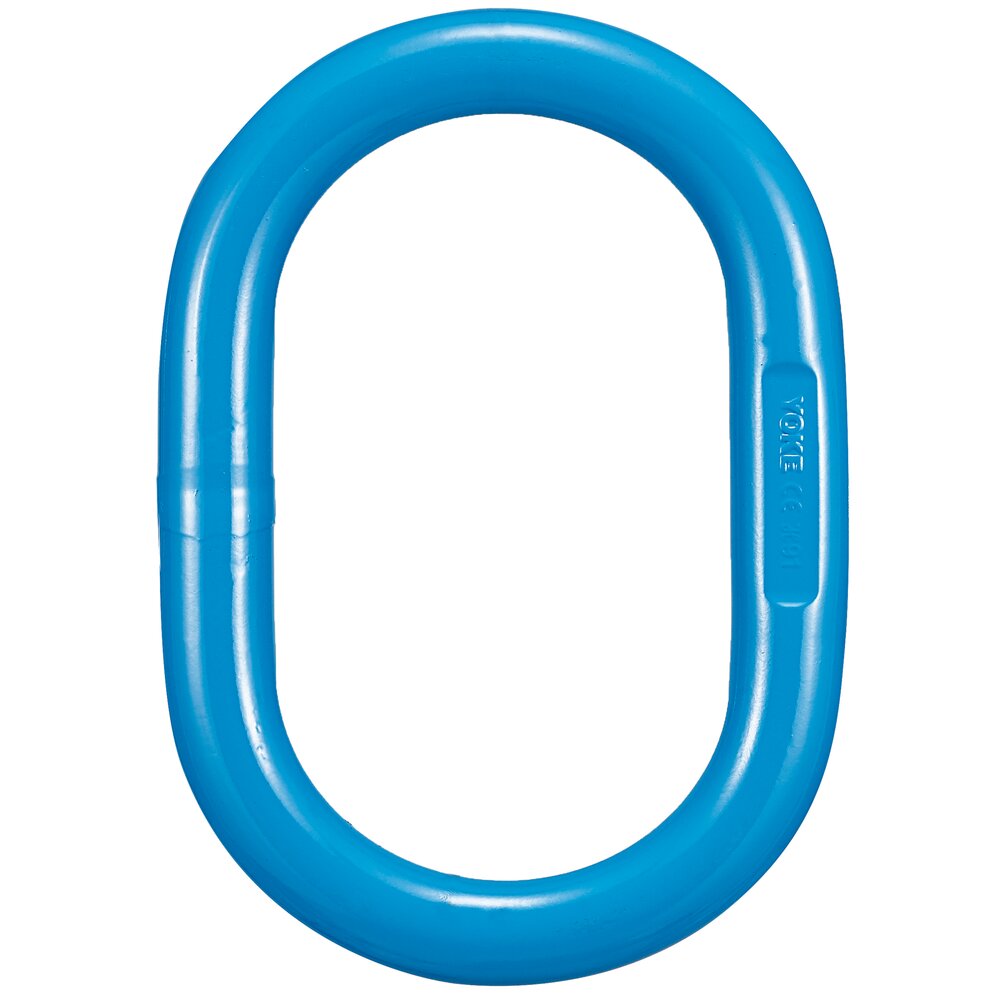

Welded Master Link designed for 1-2 legs Wire Rope and Chain Slings. The engineered flat makes it simple to insert wire rope thimbles on our links. Suitable for omega links.
At least 25% greater WLL than traditional Grade 8 products.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Tempering temperature at a minimum of 400°C.
- Material: Quenched and Tempered Alloy Steel.
- Marking: According to standard, CE-marked, Type, manufacturer ID, traceability.
- Temperature range: -40° up to +200°C (without reduction in WLL).
- Finish: Blue painted.
-
Standard:
EN 1677-4
AS 3776
- Safety factor: 4:1
- Grade: 10
